      SYS-E100-12T-L Supermicro
      SYS-E100-12T-L Supermicro

      SYS-E100-12T-L Supermicro

      771,76 $
      Prix HT
      SYS-E100-12T-L Supermicro Fanless CSE-E101-03 + X12STN-L-WOHS Black
      Quantity :
      Donnez votre avis
      • OFFRE OPTIMISÉE: Demandez votre devis gratuitOFFRE OPTIMISÉE: Demandez votre devis gratuit
      • LIVRAISON RAPIDE: 2H/ Paris 24H/ FRANCE LIVRAISON RAPIDE: 2H/ Paris 24H/ FRANCE
      • Demandez Conseil à notre équipe avant vente au 0148101120 ou par email au sales@asinfo.comDemandez Conseil à notre équipe avant vente au 0148101120 ou par email au sales@asinfo.com

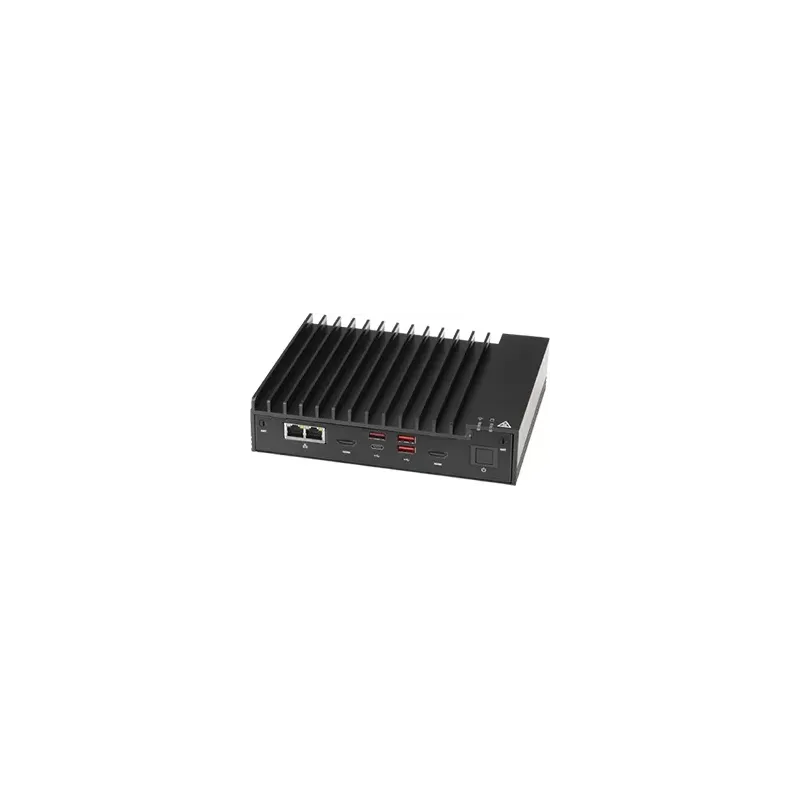

      Supermicro SYS-E100-12T-L Fanless CSE-E101-03 + X12STN-L-WOHS Black

      Product SKUs
      SYS-E100-12T-L
      • SuperServer E100-12T-L (Black)
      Motherboard

      Super X12STN-L-WOHS
      Processor/Cache
      CPU
      • 11th Generation Intel® Core™ i3-1115GRE Processor
      • Single Socket FCBGA-1449
      • System-on-Chip
      • CPU TDP support up to 12/15/28W
      Note BIOS version 1.1 or above is required
      System Memory
      Memory Capacity
      • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
      Memory Type
      • DDR4 up to 3200MHz
      DIMM Sizes
      • 32GB, 16GB, 8GB, 4GB
      Memory Voltage
      • 1.2V
      On-Board Devices
      Chipset
      • System on Chip
      Network Controllers
      • Dual 2.5GbE LAN with Intel® I225-IT
      Audio
      • ALC 888S HD Audio
      Video
      • Intel® Xe Graphics
      Input / Output
      USB
      • 3 USB 3.2 ports, 1 USB-C 3.2 port, 4 USB 2.0 ports
      Video Output
      • 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b
      COM Port
      • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
      Audio
      • 1 HD Audio header
        (Mic-in/Line-Out) [optional]
      Others
      • 8-bit configurable GPIO via DB9
      Chassis
      Form Factor
      • 3.5" SBC
      Model
      • CSE-E101-03
      Dimensions
      Width
      • 7.68" (195mm) / 11.81" (300mm) - pkg.
      Height
      • 1.73" (44mm) / 5.12" (130mm) - pkg.
      Depth
      • 5.94" (150mm) / 11" (279mm) - pkg.
      Weight
      • Gross Weight: 4.5 lbs (2.04 kg)
      • Net Weight: 2.65 lbs (1.2 kg)
      Available Colors
      • Black
      Front Panel
      Buttons
      • Power On/Off button
      LEDs
      • Power LED and Hard drive activity LED
      Expansion Slots
      M.2
      • Key: B-Key, M-Key, E-Key
      • M.2 2242/3042/2280
      • B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
      • E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280
      • M-Key (PCI-E 4.0 x4), NVMe support
      System Cooling
      Fans
      • Fan-less design
      Power Supply
      Lockable 12V DC 84W power adapter
      System BIOS
      BIOS Type
      • AMI UEFI
      Management
      Software
      Power Configurations
      • +12V ~ +24V DC Wide power range input
      • ACPI Power Management
      • Control of power-on for recovery from AC power loss
      • Force Power On by Jumper
      • CPU thermal trip support for processor protection
      Operating Environment / Compliance
      RoHS
      • RoHS Compliant
      Environmental Spec.
      • Operating Temperature:
        -30°C ~ 50°C (-22°F ~ 122°F) with 0.7 m/s air flow. The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
      • Non-operating Temperature:
           -40°C to 70°C (-40°F to 158°F)
      • Operating Relative Humidity:
           8% to 90% (non-condensing)
      • Non-operating Relative Humidity:
           5% to 95% (non-condensing)
      • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
      • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
      Supermicro
      SYS-E100-12T-L

      Fiche technique

      Processor brand
      Intel
      Number of processors
      1

      Références Fabricants

      MPN
      SYS-E100-12T-L
