      SYS-E100-9W-H Supermicro
      SYS-E100-9W-H Supermicro

      SYS-E100-9W-H Supermicro

      965,88 $
      Prix HT
      SYS-E100-9W-H Supermicro Fanless E101-02 + Whiskey Lake X11SWN-H-WOHS,RoHS
      Quantity :
      Donnez votre avis
      • OFFRE OPTIMISÉE: Demandez votre devis gratuitOFFRE OPTIMISÉE: Demandez votre devis gratuit
      • LIVRAISON RAPIDE: 2H/ Paris 24H/ FRANCE LIVRAISON RAPIDE: 2H/ Paris 24H/ FRANCE
      • Demandez Conseil à notre équipe avant vente au 0148101120 ou par email au sales@asinfo.comDemandez Conseil à notre équipe avant vente au 0148101120 ou par email au sales@asinfo.com

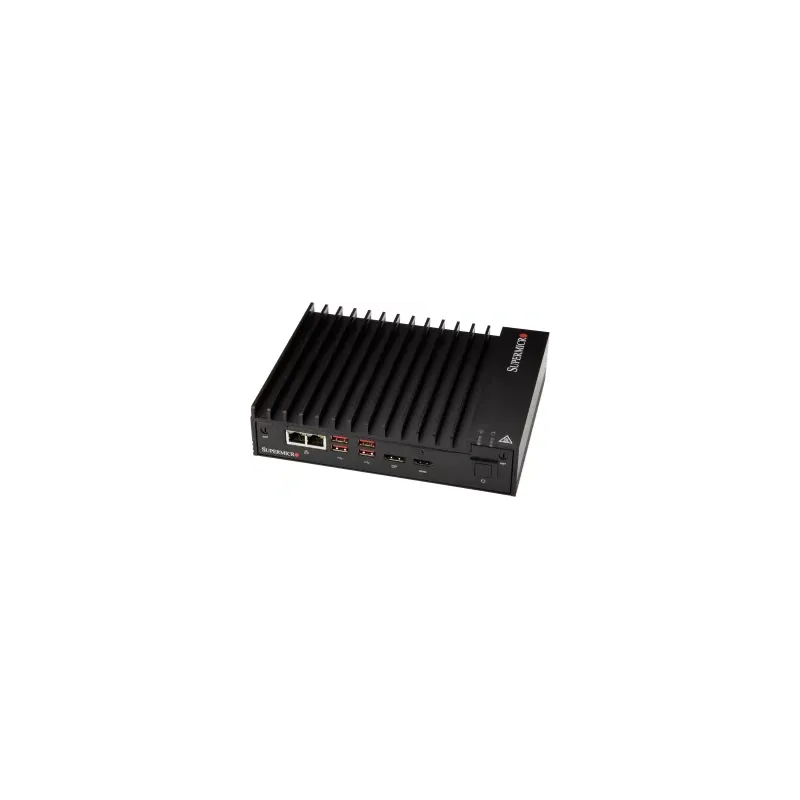

      Supermicro SYS-E100-9W-H Fanless E101-02 + Whiskey Lake X11SWN-H-WOHS,RoHS

      Product SKUs
      SYS-E100-9W-H
      • SuperServer E100-9W-H (Black)
      Motherboard

      Super X11SWN-H-WOHS
      Processor/Cache
      CPU
      • 8th Generation Intel® Core™ i7-8665UE Processor
      • Single Socket FCBGA-1528
      • System-on-Chip
      • CPU TDP support 15W
      Note BIOS version 2.0 or above is required
      System Memory
      Memory Capacity
      • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
      Memory Type
      • DDR4 up to 2400MHz
      DIMM Sizes
      • 32GB, 16GB, 8GB, 4GB
      Memory Voltage
      • 1.2V
      On-Board Devices
      Chipset
      • System on Chip
      Network Controllers
      • Single LAN with Intel® I210IT
      • Single LAN with Intel® PHY I219LM
      Audio
      • ALC 888S HD Audio
      Video
      • Intel® UHD Graphics 620
      Input / Output
      USB
      • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
      Video Output
      • 1 HDMI and 1 Display Port
      COM Port
      • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
      Audio
      • 1 HD Audio header
        (Mic-in/Line-Out) (option)
      Others
      • 8-bit configurable GPIO via DB9
      Chassis
      Form Factor
      • 3.5" SBC
      Model
      • CSE-E101-02
      Dimensions
      Width
      • 7.68" (195mm) / 11.81" (300mm) - pkg.
      Height
      • 1.73" (44mm) / 5.12" (130mm) - pkg.
      Depth
      • 5.94" (151mm) / 11" (279mm) - pkg.
      Weight
      • Gross Weight: 4.5 lbs (2.04 kg)
      • Net Weight: 2.65 lbs (1.2 kg)
      Available Colors
      • Black
      Front Panel
      Buttons
      • Power On/Off button
      LEDs
      • Power LED and Hard drive activity LED
      Expansion Slots
      M.2
      • Key: B-Key, M-Key, E-Key
      • M.2 2242/3042/2280
      • B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
      System Cooling
      Fans
      • Fan-less design
      Power Supply
      Lockable 12V DC 60W power adapter
      System BIOS
      BIOS Type
      • AMI UEFI
      Management
      Software
      Power Configurations
      • +12V ~ +24V DC Wide power range input
      • ACPI Power Management
      • Control of power-on for recovery from AC power loss
      • Force Power On by Jumper
      • CPU thermal trip support for processor protection
      Operating Environment / Compliance
      RoHS
      • RoHS Compliant
      Environmental Spec.
      • Operating Temperature:
        0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow
      • Non-operating Temperature:
           -40°C to 70°C (-40°F to 158°F)
      • Operating Relative Humidity:
           8% to 90% (non-condensing)
      • Non-operating Relative Humidity:
           5% to 95% (non-condensing)
      • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
      • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms

        The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
      Supermicro
      SYS-E100-9W-H

      Fiche technique

      Processor brand
      Intel
      Châssis Form Factor
      Mini-1U

      Références Fabricants

      MPN
      SYS-E100-9W-H
